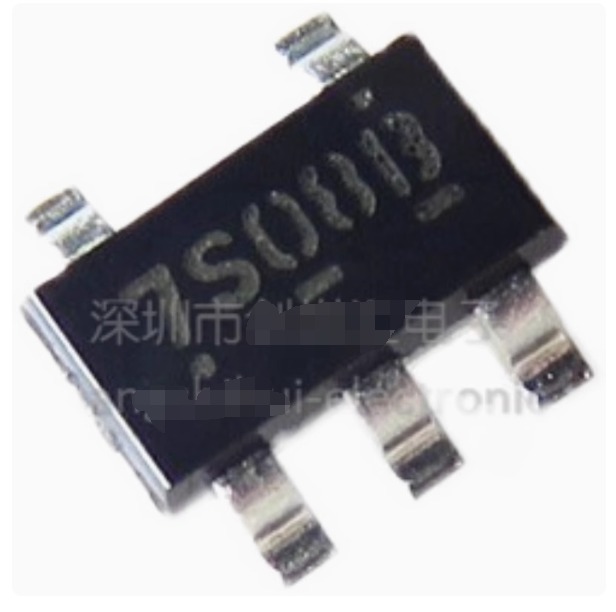

7s08

The NC7S08 is a single 2−Input high performance CMOS AND

Gate. Advanced Silicon Gate CMOS fabrication assures high speed

and low power circuit operation over a broad VCC range. ESD

protection diodes inherently guard both inputs and output with respect

to the VCC and GND rails. Three stages of gain between inputs and

outputs assures high noise immunity and reduced sensitivity to input

edge rate.
